Marine antenna LMO7270 4G/LTE/3G/2G MIMO Omni

Features
Multiband MIMO OmniAntenna
Covers LTE, 4G, 3G and GSM bands
Dual Polarisation
Dual Ports
Optional Mount Bracket for wall or pole

Specifications
Frequency range: 690-800/800-960 / 1710-2170 / 2500-2700 MHz
Peak Gain – Element 1: 1.4 / 2.0 / 3.0 / 3.3 dBi
Peak Gain – Element 2: 2.8 / 3.0 / 3.9 / 3.9 dBi
Polarisation: Dual Polarised
Impedance: 50 Ohm
VSWR: Price: (Enquiry)

Description

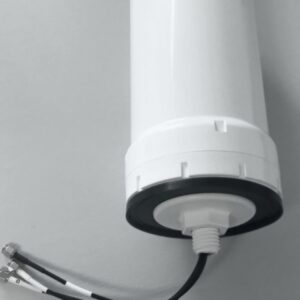

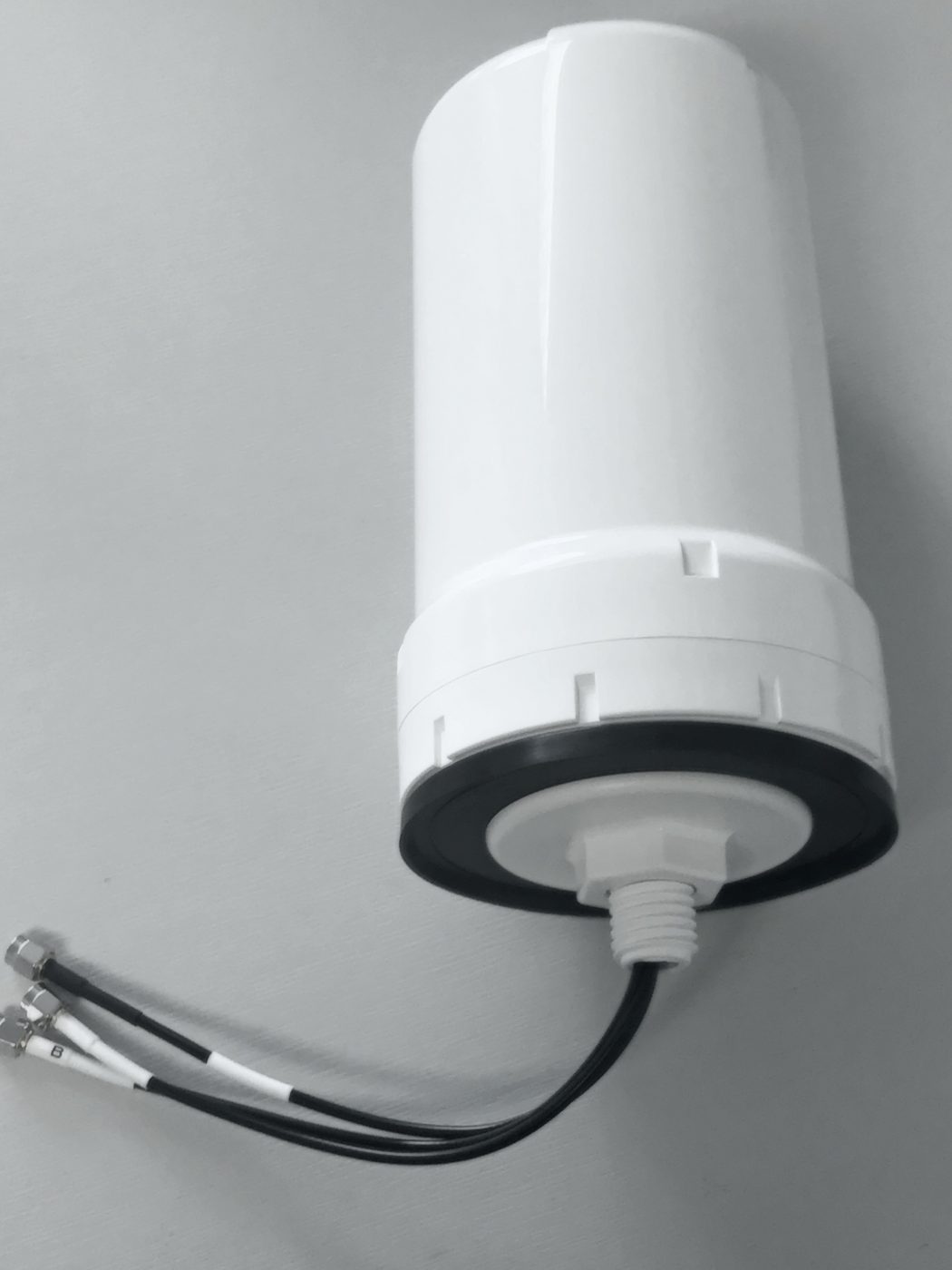

The LMO7270 is a MIMO (2 port) 4G / LTE Multiband omni-directional antenna. Housed in a durable radome, the LMO7270 antenna is suitable for outdoor applications including leisure marine environments to improve reception of 4G (LTE), 3G and GSM signals, especially for wireless broadband, security and CCTV deployments. The frequencies supported are 700, 800, 900, 1800, 1900, 2100 and 2600 MHz covering all major 4G, LTE, GSM and 3G frequency bands. The LMO7270 measures approximately 187mm in height and 106mm at the base. It will be available with or without the wall/pole mount bracket and fed by two short pigtail cables, allowing for longer jumper cables to be connected for specific cable runs. The LMO7270 antenna is supplied with a gasket and a moulded nut as standard so the antenna can be installed as a permanent, through-hole mount solution to be mounted onto a non-metal surface or enclosure. Alternatively, the antenna can be ordered to include brackets for wall or pole mount.
